Portable Concrete Batching Plant Portable Concrete Batching Plant Portable Concrete Batching Plant
Portable Concrete Batching Plant Portable Concrete Batching Plant Portable Concrete Batching Plant

Portable Concrete Batching Plant

The portable concrete batching plant, for this kind of concrete batching plant, it can be towed to different working sites by a tractor or wheel loader. For this type machine, the foundation is not required. It will save the time and cost for installation. It is a real mobile concrete batching plant. It is widely used in Asia, Africa and Latin America.

TAG: Belt conveyor type concrete batching plantMobile concrete batching plantSkid hoisting type concrete batching plantStationary concrete batching plant

How does a mini portable concrete batch plant work?

Portable Concrete Batching Plant

Maximizing Mobility with a Portable Concrete Batching Plant: A Portable Concrete Batching Plant offers unparalleled versatility for your construction needs. Within this mobile setup, a wheel loader efficiently manages the feeding of three distinct hoppers, each designated for different-sized aggregates and sand. The utilization of load cells ensures the precise weighing of aggregates and sand. The cement is sourced either from the cement hopper or a cement silo via a screw conveyor, maintaining accuracy and consistency.

The water supply, regulated by a water pump, is meticulously measured using load cells, ensuring that every component is proportioned accurately. These materials are then introduced into the drum mixer, guaranteeing thorough and consistent mixing.

Following mixing, the concrete can be efficiently discharged into a concrete transit mixer truck, a small dumper, or a trailer concrete pump, depending on the specific needs of the project. This flexibility and mobility make a Portable Concrete Batching Plant an indispensable asset for your construction endeavors.

Advantages of portable concrete batchplant

  • 1. The structure is compact, and almost all the processes of concrete production are concentrated on the trailer unit;
  • 2. No need to prepare foundation, it can work as soon as it arrives the working site;
  • 3. Two options concrete mixer, drum type concrete mixer and twin-shaft concrete mixer;
  • 4. It can be fit into a 40ft container for the complete machine;
  • 5. Cement silo or cement hopper can be equipped to this portable concrete batching plant.
  • 6. The price of this portable concrete batching plant is lower, cheaper than the one with double shafts concrete mixer;

2 4

New designed portable concrete batch plant for sale

There is another solution for the small portable concrete batch plant, it is equipped with JS500 twin-shafts concrete mixer, and a belt conveyor to transport the concrete into the concrete mixer truck.
It is suitable for some projects require the concrete more strictly. And we can provide you with a compact full automatic portable concrete batching plant equipped with JS1000 twin shaft concrete mixer. It is a 50m3 portable concrete batching plant.
3 7

For what projects to use this portable concrete batch plant?

There are many different projects which need different grades and quality concrete, generally speaking, the concrete quality is better if it is batch mixed from the twin shaft compulsory concrete mixer or planetary concrete mixer.

From the drum type batch mixer, the quality is not so good as the concrete from the forced type concrete mixer.

So, normally speaking, for this simple type portable concrete batching plant for sale, it is designed for some simple projects.

4 1 1

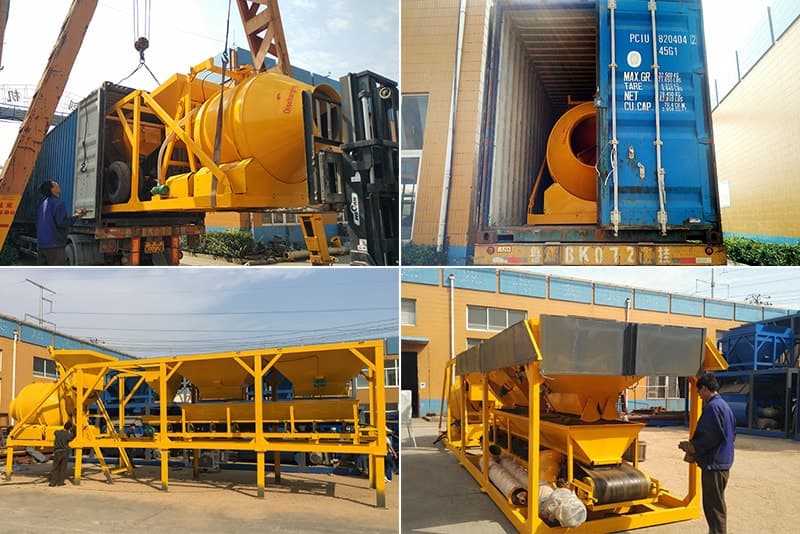

Portable Concrete Batching Plant Goods Delivery

Based on good quality and decades of experience, the Portable Concrete Batching Plant which is manufactured by HAMAC was exported to different countries. The Portable Concrete Batching Plant will be packed and loaded in our factory, and then be shipped to our clients safe and sound.
Portable Concrete Batching Plant

Portable Concrete Batching Plant Specification

Theoretical Productivity
Central Mixer0.5m3 per batch, JZM500 drum concrete mixer0.5m3 per batch, JS500 twin-shaft concrete mixer
Aggregate Batching System3 hoppers3 hoppers
Discharging Height(Mm)12003800
