Spider Concrete Placing Boom

Spider concrete placing boom is also named mobile concrete placing boom. It is easily installed on the jobsite and can be connected to any of concrete pumps. This helps pour large areas without needing to work with the traditional heavy line systems. There is a pipeline inlet under the concrete placing boom, just connect the pipeline of the pump to the pipeline under the concrete placing boom, then the concrete can be placed at different positions on the floor by the concrete placing boom.


TAG: Concrete spider placing boomPutzmeister spider concrete placing boomsSpider concrete placing boomSpider concrete pump placing boom

Brief introduction of spider concrete place boom

The spider concrete placing boom is a mobile concrete placing boom for sale, it seems like a spider. That is why people call it as spider type. It is a very popular concrete placing boom for sale in concrete pouring.

Its placing radius varies from 13-21m.We have HGY13, HGY15, HGY17, HGY21. It is fully hydraulic driven, its working efficiency is higher compared with the manual type. It can be lifted by the tower crane which is nearby the building. So, it can be moved in different positions on the floor.

Spider Concrete Placing Boom

Its main parts are boom system, rotating seat, main support frame, pipes, hydraulic system, electric control system etc.

Features of mobile concrete placing boom for sale

  1. 1. Three sections of boom, full hydraulic driven. It is easy to fold and unfold the boom, and it can rotate at 360 degrees, the working scope is very wide;
  2. 2. It is equipped with remote controller, you can control the concrete placer boom as you prefer. Another control system can start working immediately if there is something wrong with one of these two systems.
  3. 3. Supported with stable legs, it is equipped with self-balance device. No need to connect the concrete boom placer with floor with bolts, just put it on the floor directly;
  4. 4. The complete machine is made from high quality steel plate, and optimized design. It is lighter than other manufacturers, so it is better for floor loading, and convenient for lifting by tower crane;
  5. 5. The main electric components are imported from US and European, so the quality is stable and lower failure rate;
  6. 6. The complete machine can be divided into several parts to be lifted, and can be assembled quickly;

Features of mobile concrete placing boom for sale

Why you should use a spider concrete placing boom?

After the concrete is pumped to the high-rise building, how you can deliver the concrete to different positions of the floor? If the conveying pipe is disassembled and assembled frequently, it will inevitably reduce the efficiency. To solve this problem,we recommend customers to use concrete placing boom. There is a pipeline inlet under the concrete placing boom, just connect the pipeline of the pump to the pipeline under the concrete placing boom, then the concrete can be placed at different positions on the floor by the concrete placing boom.The spider concrete placing boom can be moved easily by the tower crane which is near to the building. And it can be equipped with wheels to be towed by people or forklift etc.

Why you should use a spider concrete placing boom?

With this system, the concrete is normally pumped by a diesel or electric motor driven stationary concrete pump, through a 5’’ pipeline, to the concrete placing boom. It will highly improve the efficiency of concrete pouring.

Why you should use a spider concrete placing boom?

Factors needs to be considered when you select a right model spider boom placer

When you want to use a spider concrete placing boom, you have to consider some important factors as below

  1. 1. The length and width of the building or floor.Because this will depend the working radius of mobile concrete placing boom; to see which length boom is suitable for the concrete pouring area;
  2. 2. If there is tower crane or other lifting device to lift the spider concrete boom placer or not?and you have to consider the weight that crane can lift. If it can not lift the weight of concrete place boom, it will be a problem.
  3. 3. If there is 3 phases power supply at working site?This spider concrete placing boom for sale is driven by electricity.

Factors needs to be considered when you select a right model spider boom placer

After you confirm the above three factors, we can recommend you the most suitable concrete placing booms for your projects.

FAQs of spider concrete placing boom

  1. 1. How many models you have?We have 13 meters, 15 meters, 17 meters and 21 meters long boom as options, the models are HGY13, HGY15, HGY17, HGY21. You can check the radius of the building, then make the choice;
  2. 2. What is the capacity of the spider concrete placing boom?Please note that spider concrete placing boom is just a tool or device to pour the concrete. Its capacity related to the concrete pumpcrete machine which is connected to the concrete placing boom. It has not its own capacity;
  3. 3. How many countries you sold concrete placing boom to?Up to now, we exported our spider concrete placing boom to Philippines, Chile, Costa Rica, Peru, Saudi Arabia and some European Countries etc. we get good feedback from the end users;
  4. 4. How long the guarantee period will be?12 months from the date of commissioning;
  5. 5. Is it too complicate to operate the spider concrete placing boom?No, it is easily to be operated and maintained.
  6. 6. What is the price of spider concrete placing boom?For different models, the price is different. Its range is from 25000-45000USD. It is a good investment to save cost in the future work.
Spider Concrete Placing Boom

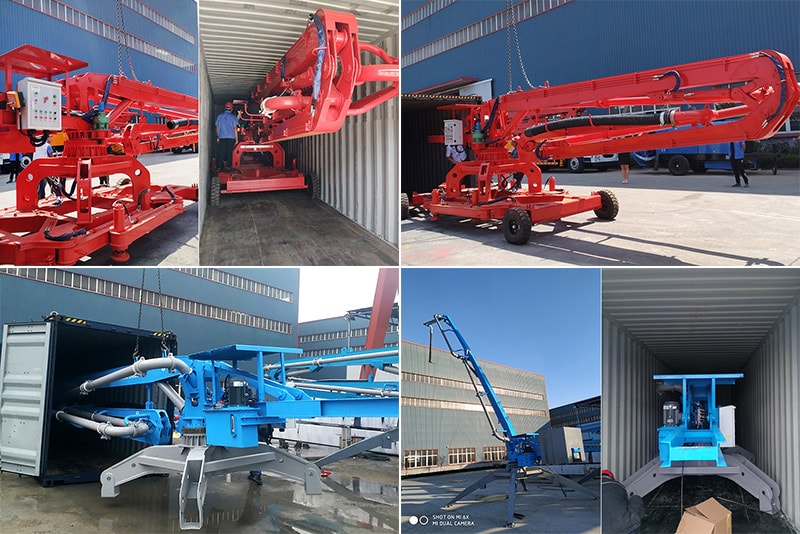

Spider Concrete Placing Boom Goods Delivery

Based on good quality and decades of experience, the Spider Concrete Placing Boom which is manufactured by HAMAC was exported to different countries. The Spider Concrete Placing Boom will be packed and loaded in our factory, and then be shipped to our clients safe and sound.

a4 30


Spider Concrete Placing Boom Specification

ItemHGY13HGY15HGY17HGY21
Max. Placing Radius (M)13151721
Big Arm Length (M)3.766.666.496
Big Arm Elevation (°)-2~84.40~700~650~65
Medium Arm Length (M)4.5255.734.585
4.59
Medium Arm Elevation (°)0~1800~1800~1800~180
0~180
Small Arm Length (M)4.7844.615.029
Small Arm Elevation (°)0~1800~1800~1800~180
Hose Length (M)3333
Concrete Delivery Pipe (Mm)Ø125×6Ø125×6Ø125×6Ø125×6
Tail Rotary Radius (M)2.722.813.513.51
Total Power (Kw)445.5/7.511
System Pressure  (MPa)24242424
Rotary Speed (R/Min)0.3—0.80.3—0.80.3—0.80.3—0.8
Rotary Range (°)0~3600~3600~3600~360
Supporting Legs Span (M)3.15×3.154×44.6×4.64.6×4.6
Overall Height (M)2.92.63.23.2
Bare Machine Weight (Kg)27003230500010000
Balance Weight (Kg)2×9002×110022002×2500
Control ModePanel/ Wireless Remote ControlPanel/ Wireless Remote ControlPanel/ Wireless Remote ControlPanel/ Wireless Remote Control
